KS-C008:4.0x1.7 To 5.5x2.5 DC M-M Plug Cable

details

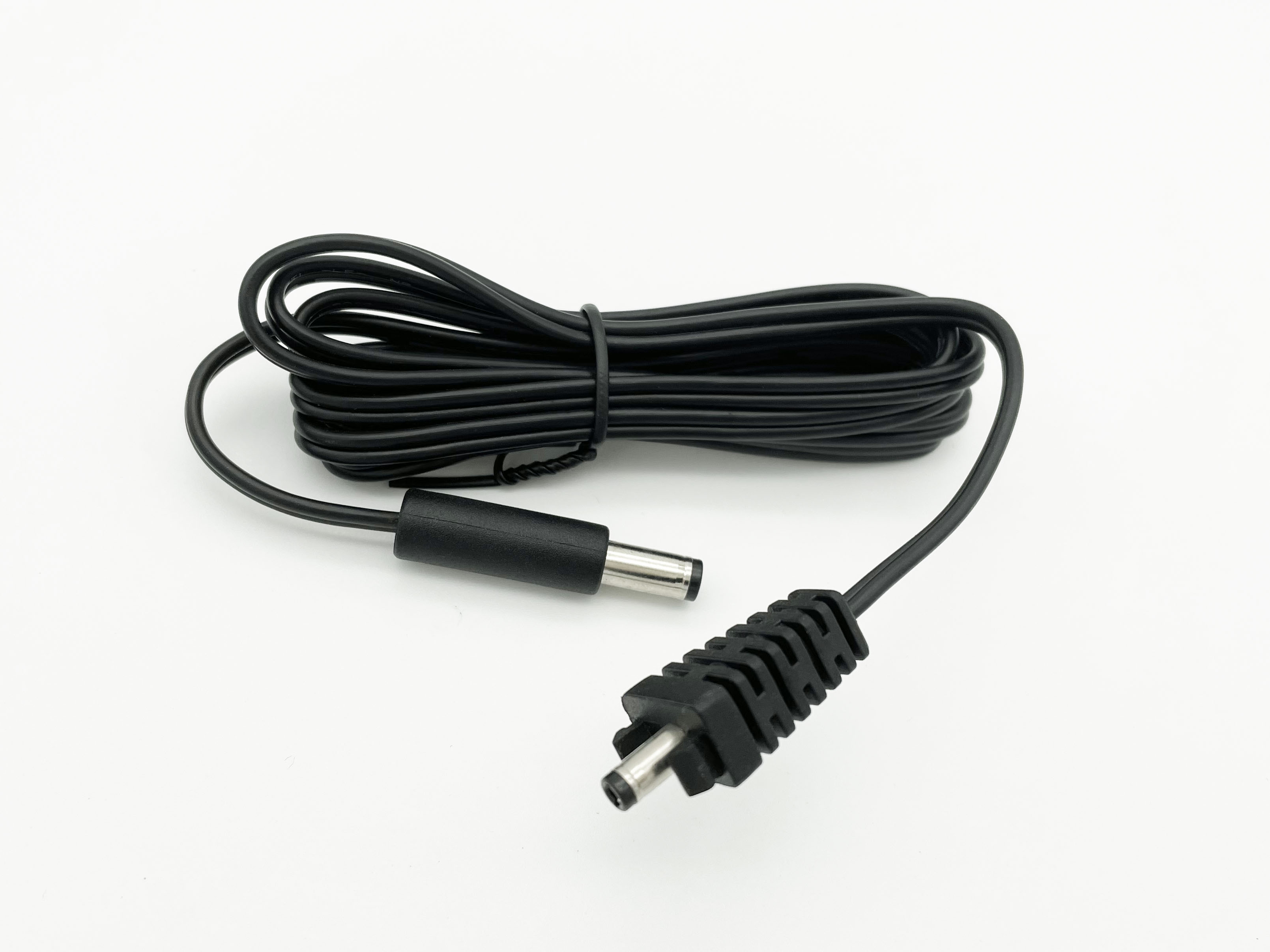

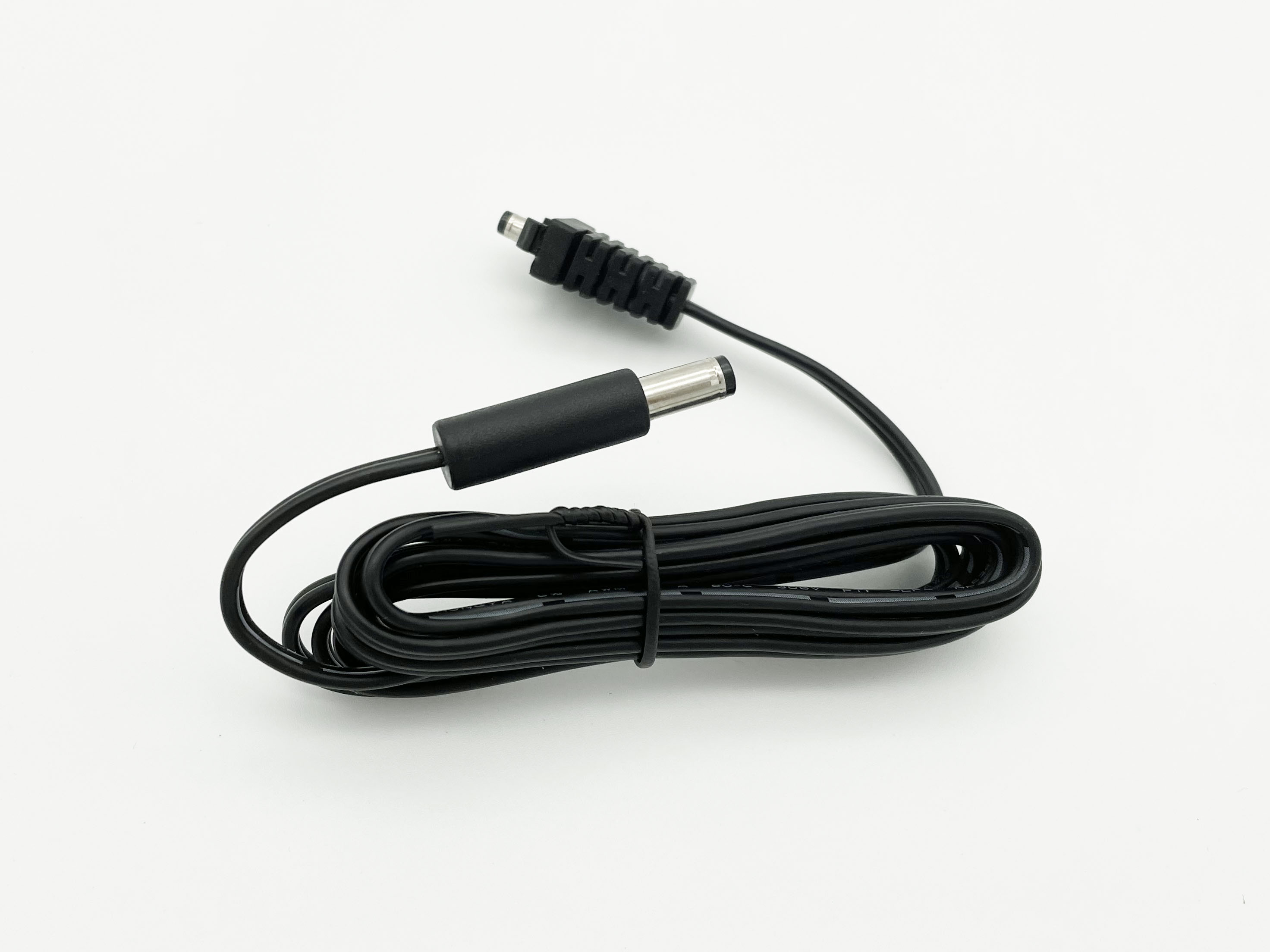

KS-C008: 4.0x1.7 To 5.5x2.5 DC M-M Plug Cable

1. P/N: KS-C008

2. Cable: UL2468 18awg(41/0.16BC)x2F, ID2.1mm, OD4.2mm

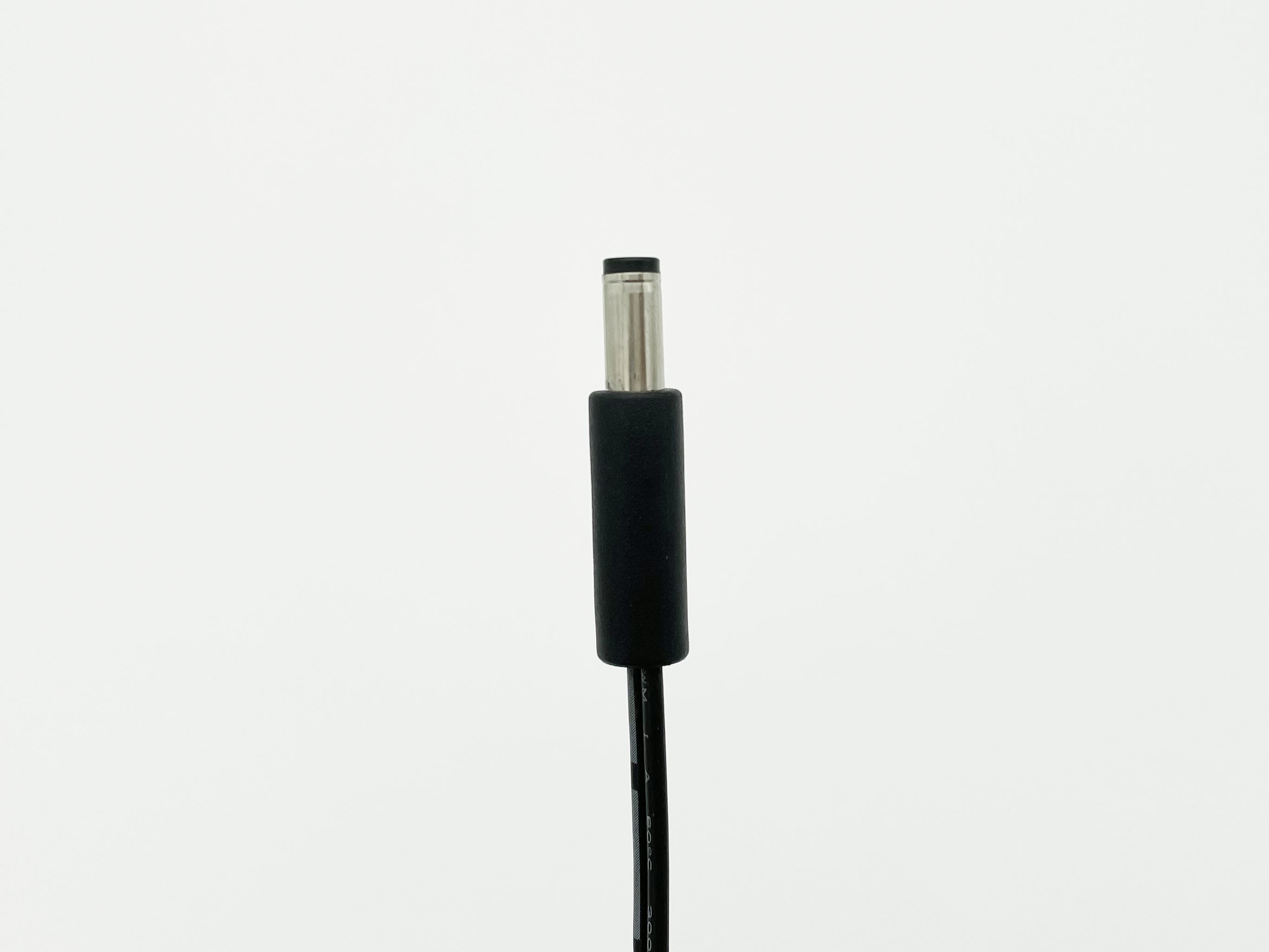

3. Connector 1: 4.0x1.7xL20.5mm DC Plug

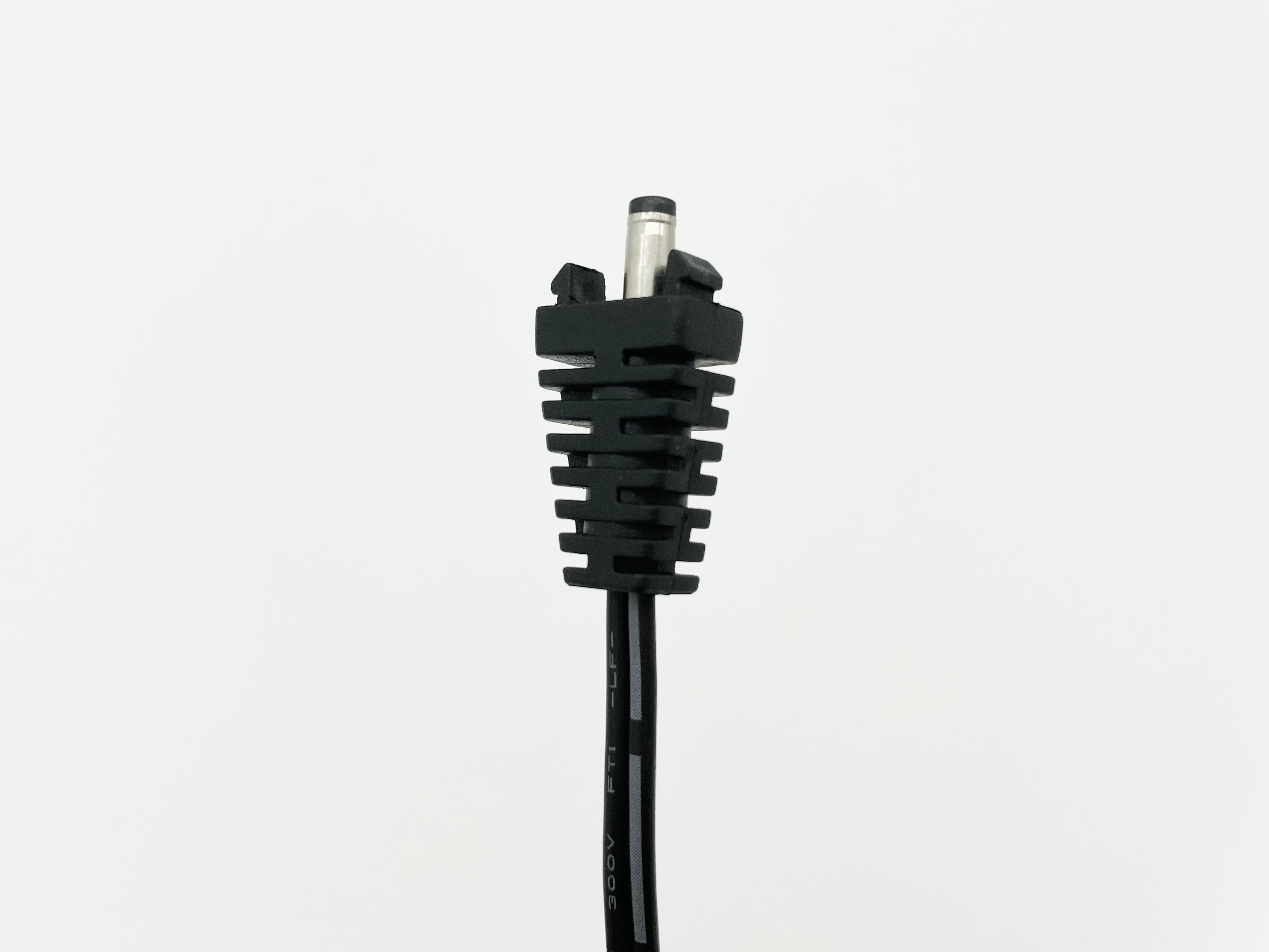

4. Connector 2: 5.5x2.5xL22.5mm DC Plug

5. Tie: 120mm, Black iron wire, 1PCS

6. Material: Black, PVC

7. Length: 1515mm

8. Usage: Adapter charging cable

Cycle Bending Test	1. Bending load: 200g, Angle: ±60°, Bending speed: 40 cycle/min, Bending cycles: 3000 cycles 2. After test, no appearance defects.
Cores Resistance	16AWG: 14.6Ω/km 22AWG: 59.4Ω/km 18AWG: 23.2Ω/km 24AWG: 94.2Ω/km 20AWG: 36.7Ω/km
Loading Durability Test	1. SR and DC plug of finished product loads 5kg weight, duration of load 5min. 2. The cable pulled away from the end position of the outer mold SR less than 2mm. Appearance: no damage.
Flammability Test	VW-1, FT1
Environmental Requirements	All materials used must conform “RoHS2.0, Reach, CA Prop65, Ortho Benzene 18P, PAHS”.
Special Note	Specification of DC plug and conductor, length of wire, SR model and color of jacket can customized according to customers.
Insertion and Withdrawal Test	1. Automatic Cycles: 3000cycles 2. No problem with electrical performance.
Salt Spray Test	After 48hours salt spray test, the surface has no red phenomenon such as corrosion, bubble, crack.

Test Items		Test Standard	Test Tools
Electric Test	Conduction	No open circuit, short circuit, INT	Conduction Test Machine
	Polarity	The wiring method is consistent with the requirements	Conduction Test Machine
	Withstand voltage	AC500V 60S 1mA	High Voltage Resistor Tester
	Insulation	DC500V 60S 50mΩ	Conduction Test Machine

Wire	Conductor Material	AWG Size	Construction(mm)	OD(mm)	Jacket
UL2468	Tinned Stranded Copper Conductor Or Bare Copper Conductor	26	7/0.16BC X 2F	1.8 X 3.6	Black dull surface(marking/white stripe)
		26	12/0.12BC X 2F	1.8 X 3.6	Black dull surface(marking/white stripe)
		24	11/0.16BC X 2F	1.8 X 3.6	Black dull surface(marking/white stripe)
		22	17/0.16BC X 2F	1.8 X 3.6	Black(marking/white stripe)
		22	17/0.15BC X 2F	1.8 X 3.6	Black(marking/white stripe)
		22	17/0.14BC X 2F	1.8 X 3.6	Black(marking/white stripe)
		22	32/0.12BC + 1000D X 2F	1.8 X 3.6	Black(marking/white stripe)
		22	32/0.12BC+500D X 2F	1.8 X 3.6	Black(marking/white stripe)
		20	26/0.16BC X 2F	1.9 X 3.8	Black dull surface(marking/white stripe)
		20	46/0.12BC+1000D X 2F	1.9 X 3.8	Black dull surface(marking/white stripe)
		18	41/0.16BC X 2F	2.1 X 4.2	Black dull surface(marking/white stripe)
		16	65/0.16BC X 2F	2.5 X 5.0	Black(marking/white stripe)

Specification of DC plug and SR model:

Minimum order quantity:
Packing Details: PE inner, carton outer
Delivery Time: 3-15 days upon receipt of payment
Payments Terms: T/T; western union; paypal; L/C
Supply Ability: 50,0000/day
Delivery Method: air shipment; sea shipment; UPS; FEDEX; DHL
