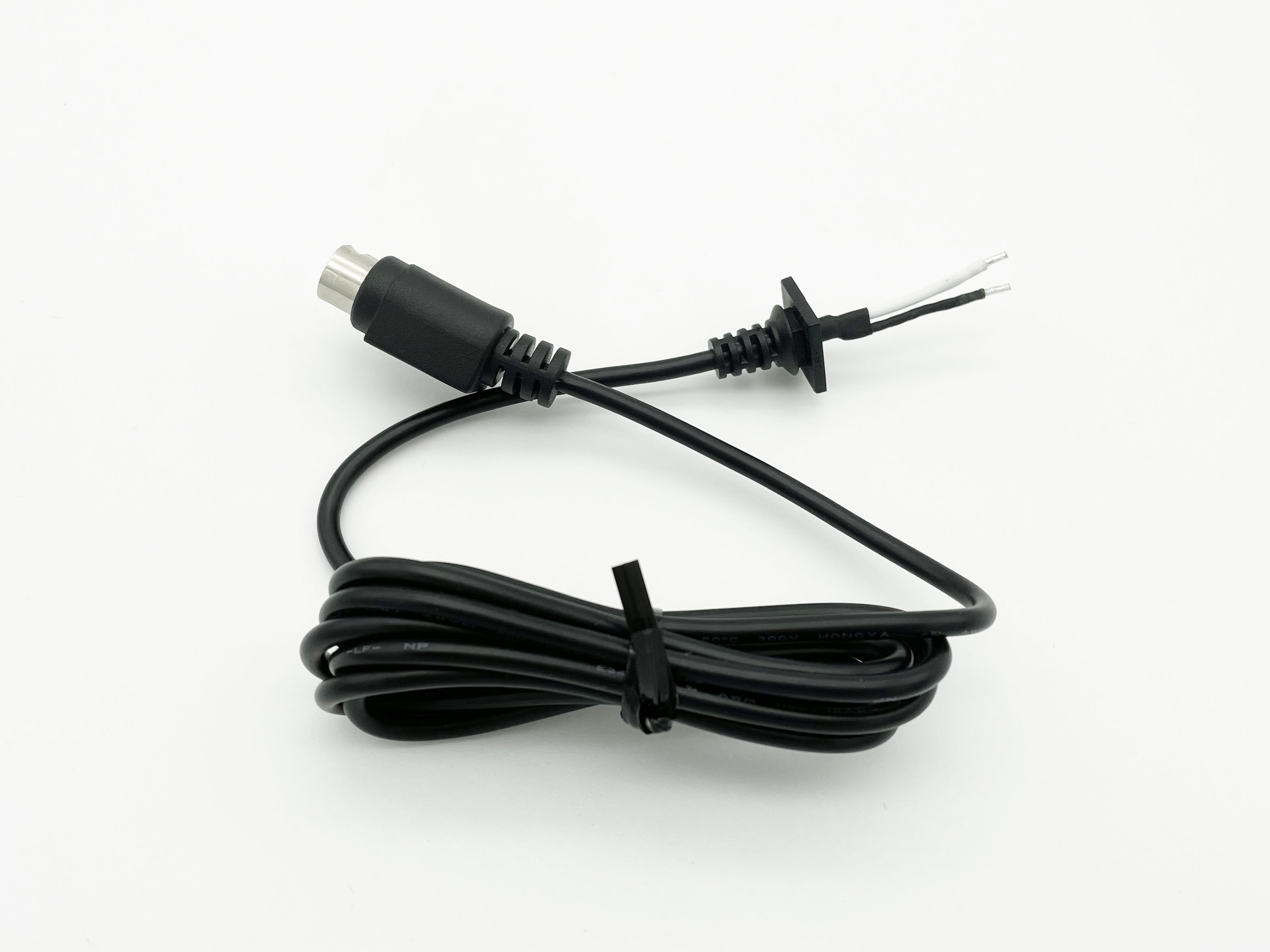

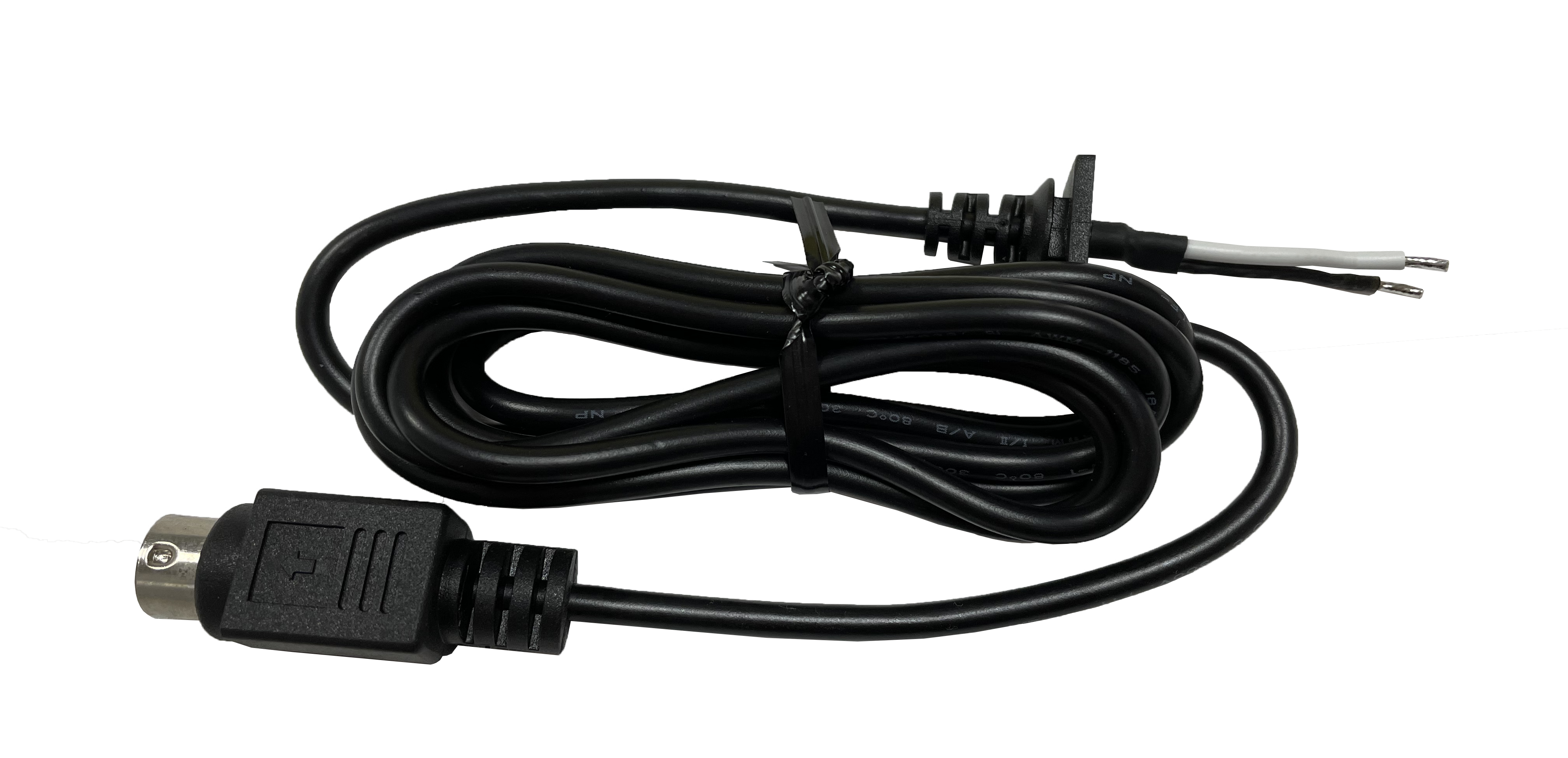

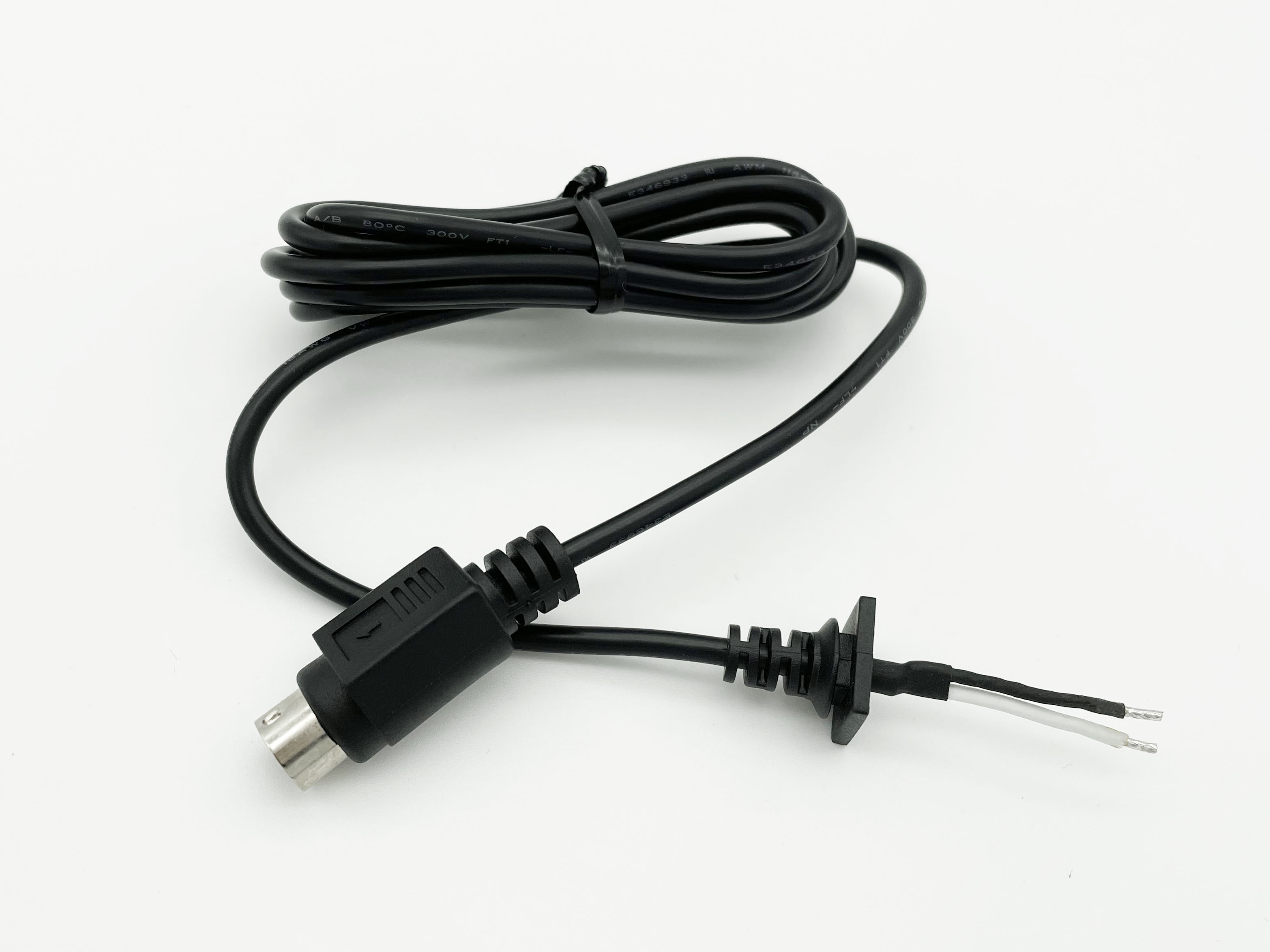

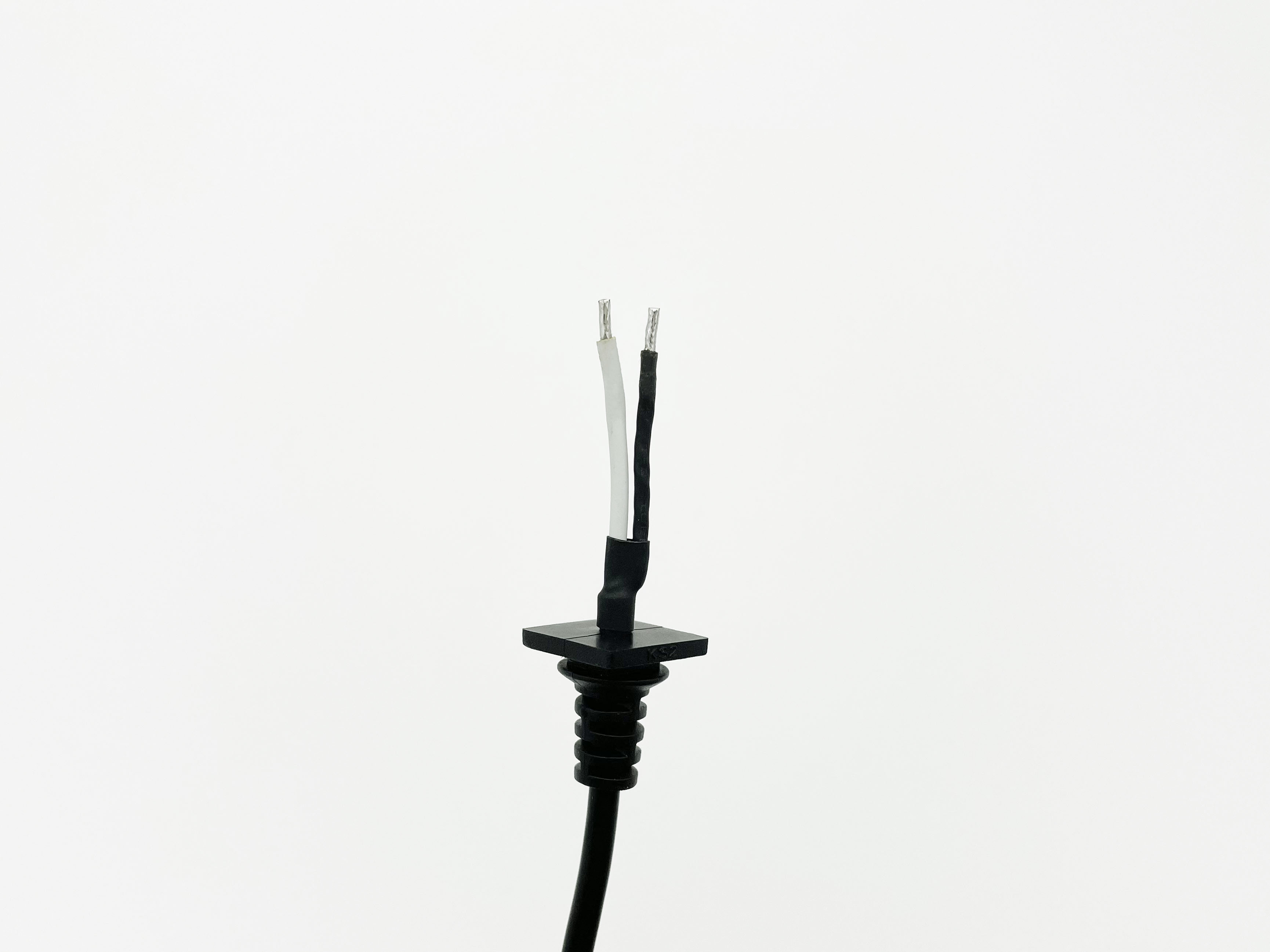

KS-C009: Mini DIN 3 Pin DC M Plug To Open End Cable
2. Cable: UL1185 18awg(41/0.16BC+62/0.12BC), ID2.0mm, OD3.5mm

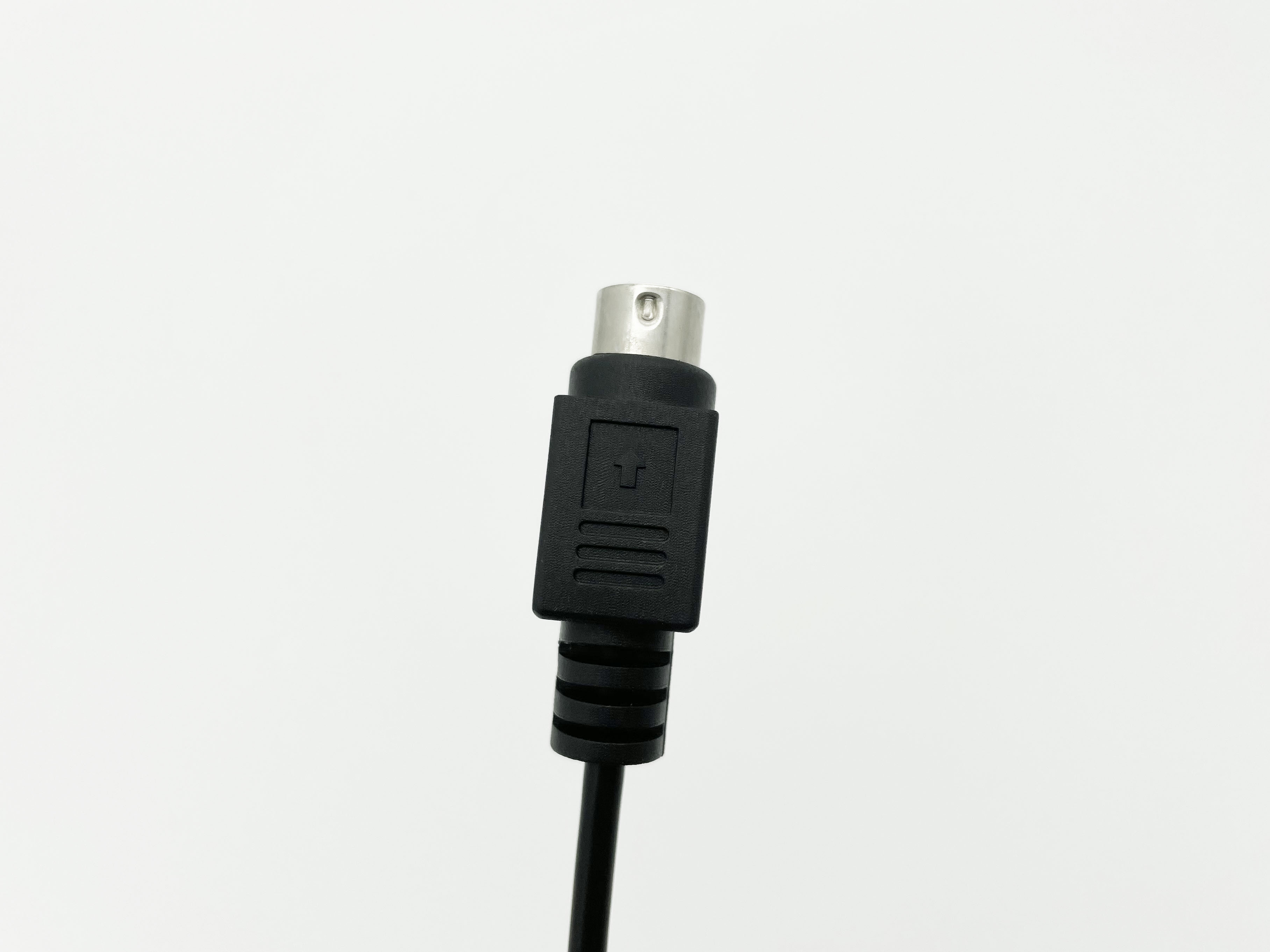

3. Connector: Mini DIN 3Pin DC Plug
4. Tie: 100mm, Black ironless wire, 1PCS
5. Material: Black, PVC
6. Length: 1570mm
7. Usage: Massage chair, etc.
-
Cycle Bending Test 1. Bending load: 250g, Angle: ±60°, Bending speed: 45 cycle/min,
Bending cycles: 1500 cycles.
2. After test, no appearance defects.Cores Resistance 16AWG: 14.6Ω/km 22AWG: 59.4Ω/km18AWG: 23.2Ω/km 24AWG: 94.2Ω/km20AWG: 36.7Ω/kmHight Temperature Resistant Test 1. Test temperature≥80℃, load 3 hours
2. No defects such as deformation and cracking.Flammability Test VW-1, FT1 Environmental Requirements All materials used must conform “RoHS2.0, Reach, CA Prop65, Ortho Benzene 18P, PAHS”. Special Note Specification of DC plug and conductor, length of wire, SR model and color of jacket can customized according to customers. Insertion and Withdrawal Test 1. Automatic Cycles: 5000cycles2. No problem with electrical performance.Salt Spray Test After 48hours salt spray test, the surface hasno red phenomenon such as corrosion, bubble, crack.
| Test Items | Test Standard | Test Tools | |
| Electric Test | Conduction | No open circuit, short circuit, INT | Conduction Test Machine |
| Polarity | The wiring method is consistent with the requirements | Conduction Test Machine | |
| Withstand voltage | AC500V 60S 1mA | High Voltage Resistor Tester | |
| Insulation | DC500V 60S 50mΩ | Conduction Test Machine | |
| Wire | Conductor Material | AWG Size | Construction(mm) | ID(mm) | OD(mm) | Core Color | Jacket |
| UL1185 |
Tinned Stranded Copper Conductor Or Bare Copper Conductor |
14 | 44/0.25TC+106/0.16TD | 3.0 | 5.0 | Black(white marking) | |
| 16 | 65/0.16BC+65/0.16BC | 2.4 | 4.0 | Black dull surface(white marking) | |||
| 16 | 26/0.254TC+61/0.12TD | 2.4 | 3.8 | white | Black(white marking) | ||
| 16 | 26/0.254TC+69/0.10TD | 2.35 | 4.0 | Black dull surface(white marking) | |||
| 16 | 26/0.254TC+55/0.12TD | 2.4 | 3.8 | ||||
| 18 | 34/0.178TC+64/0.10TD | 2.05 | 3.5 | white | Black dull surface(white marking) | ||
| 18 | 41/0.16BC+62/0.12BC | 2.0 | 3.5 | white | Black dull surface | ||
| 18 | 41/0.16TS+63/0.10TD | 2.0 | 3.5 | white | Black dull surface(white marking) | ||
| 18 | 41/0.16TC+41/0.16TS | 2.0 | 3.5 | white | Black(white marking) | ||
| 18 | 41/0.16TC+53/0.12TD | 2.0 | 3.5 | white | Black dull surface(white marking) | ||
| 18 | 72/0.12TC+1000D+72/0.10TC | 2.05 | 3.5 | Black | |||
| 20 | 26/0.16BC+46/0.12BC | 1.8 | 3.5 | Black(white marking) | |||
| 20 | 21/0.178TC+50/0.10TD | 1.8 | 3.2 | Black dull surface(white marking) | |||
| 20 | (46/0.12TC+500D)+65/0.10TD | 1.8 | 3.5 | Black dull surface(white marking) | |||
| 20 | 26/0.16TC+50/0.10TS | 1.8 | 3.5 | Black(white marking) | |||
| 22 | 17/0.16TC+50/0.10TS | 1.6 | 3.5 | Black(white marking) | |||
| 24 | 11/0.16TC+45/0.11TS | 1.4 | 3.5 |
Black(white marking) |
Specification of DC plug and SR model:
Packing Details: PE inner, carton outer
Delivery Time: 3-15 days upon receipt of payment
Payments Terms: T/T; western union; paypal; L/C
Supply Ability: 50,0000/day
Delivery Method: air shipment; sea shipment; UPS; FEDEX; DHL
