KS-C020:Micro 5Pin USB To USB A/M Plug Cable

details

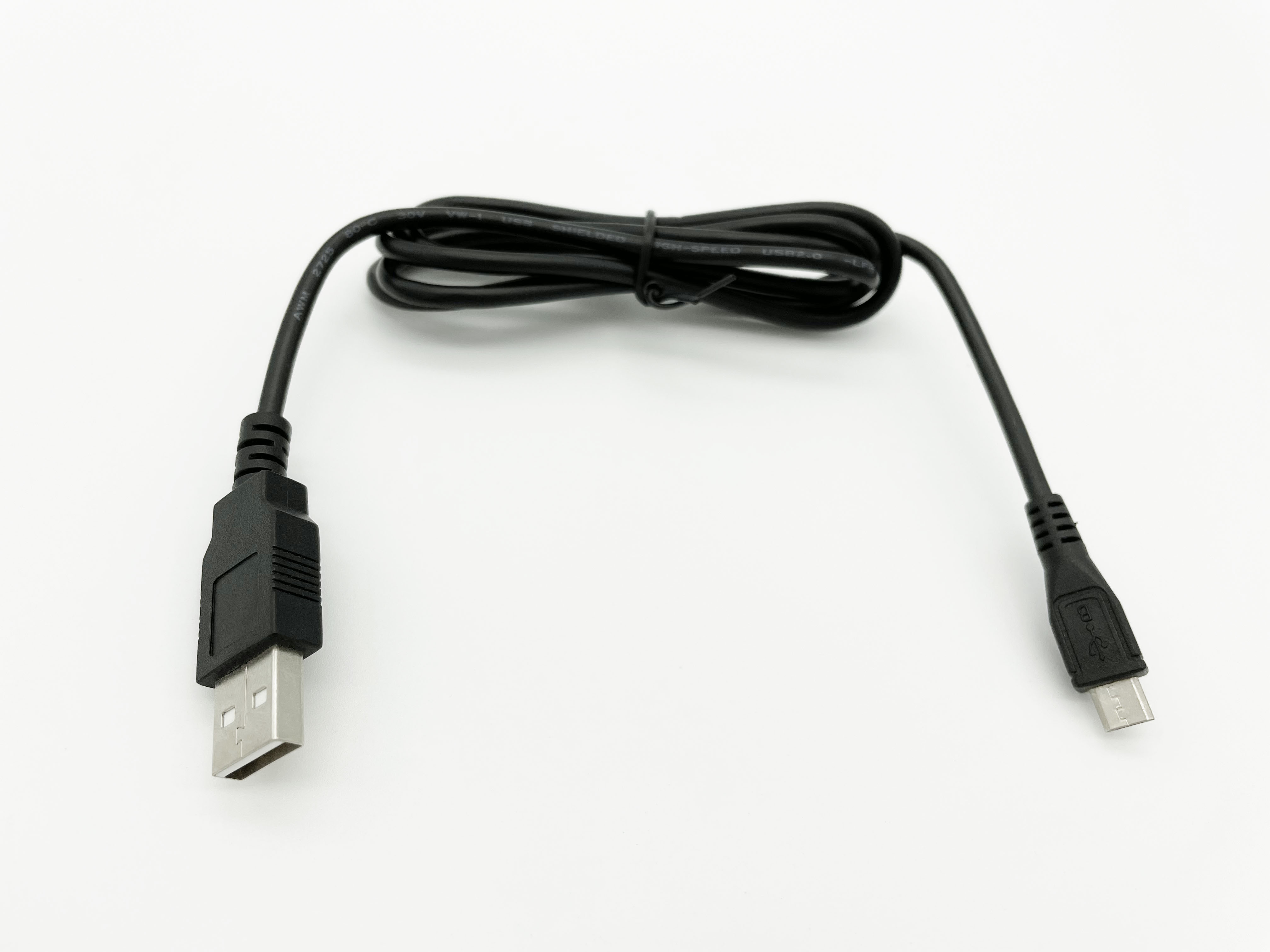

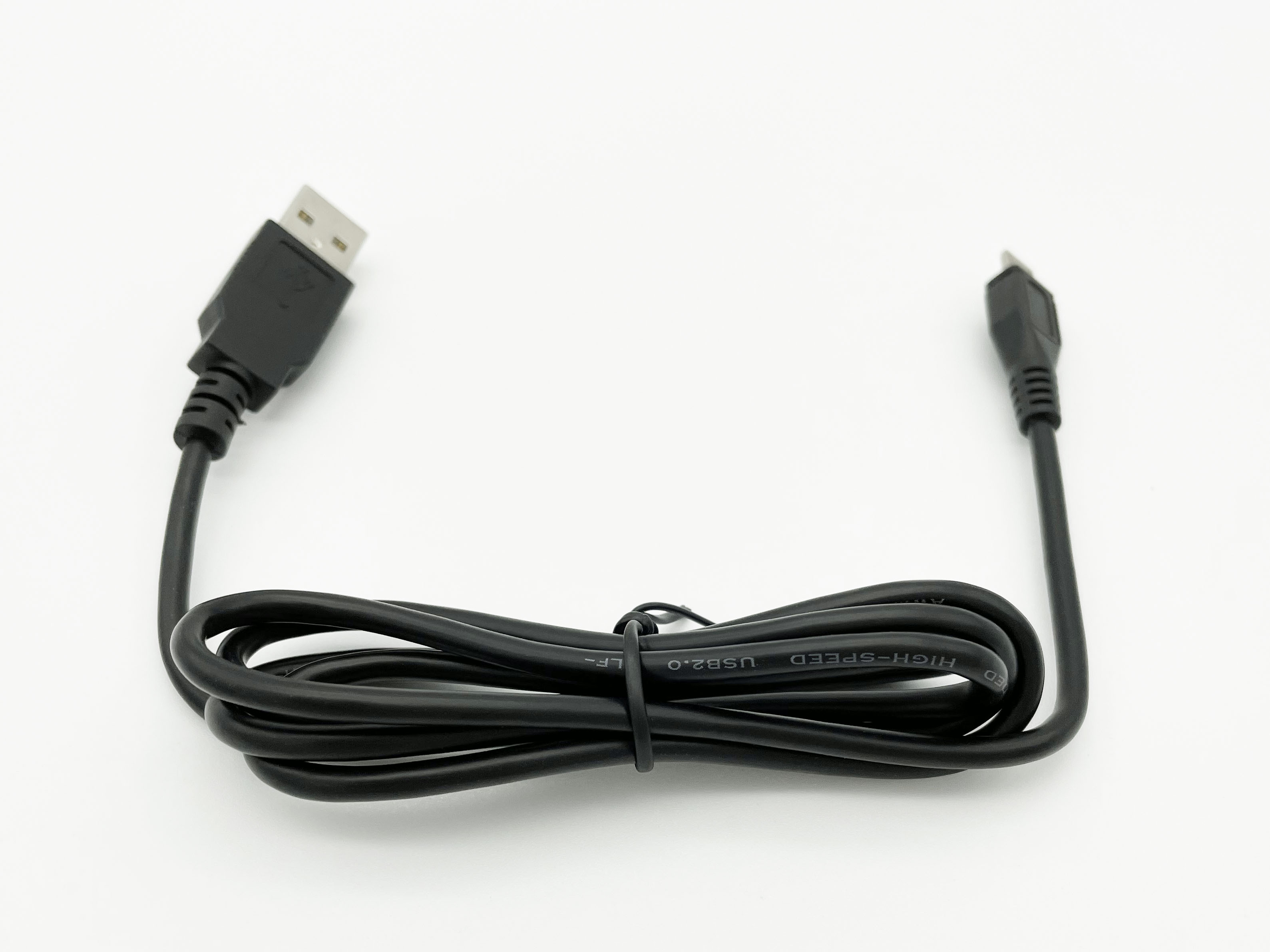

KS-C020: Micro 5Pin USB To USB A/M Plug Cable

1. P/N: KS-C020

2. Cable: UL2725 24awg(11/16TC, ID0.95mm)x2C+ 28awg(7/0.12TC, ID0.80mm)x1P+AL+B, OD3.5mm

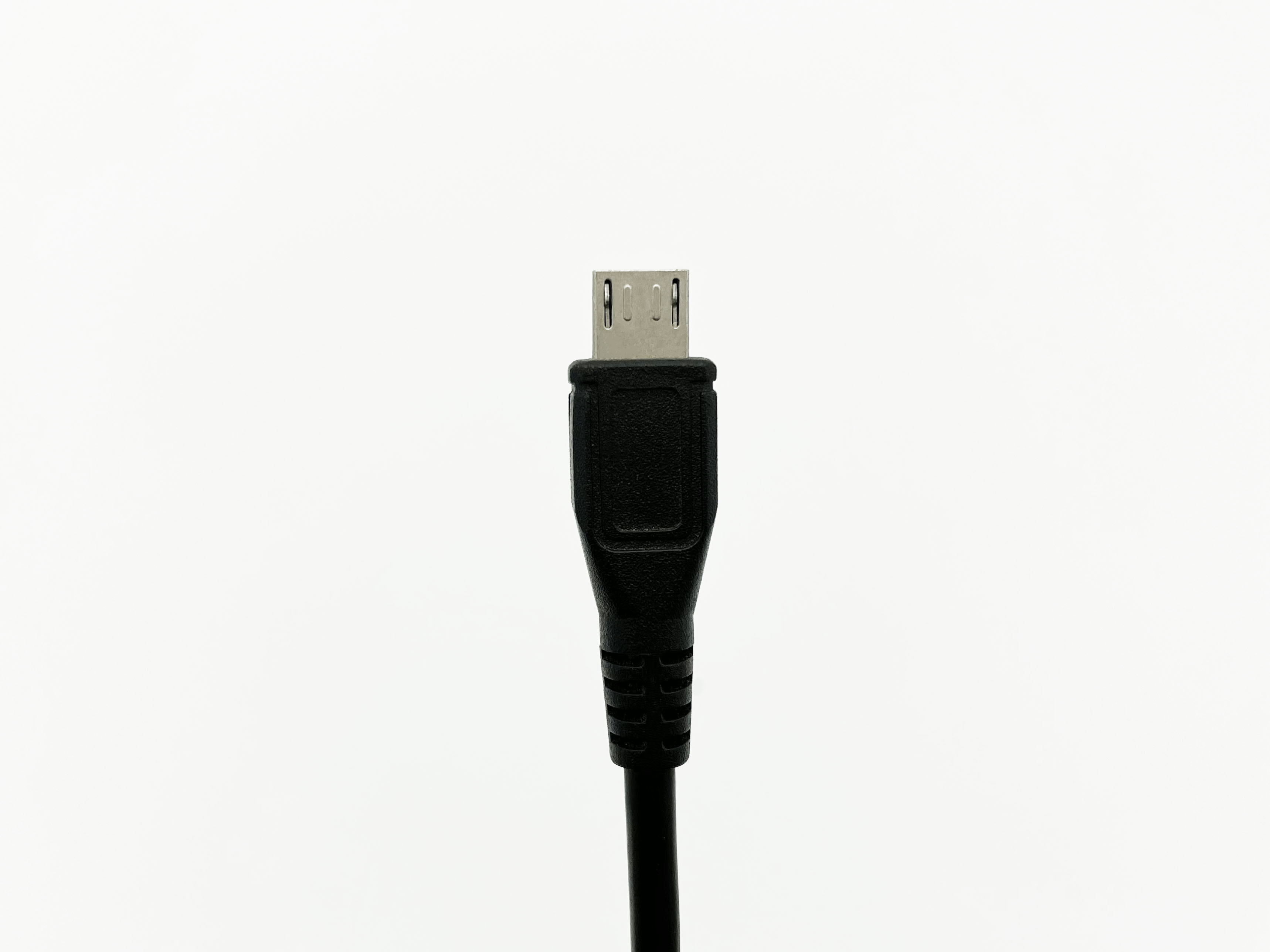

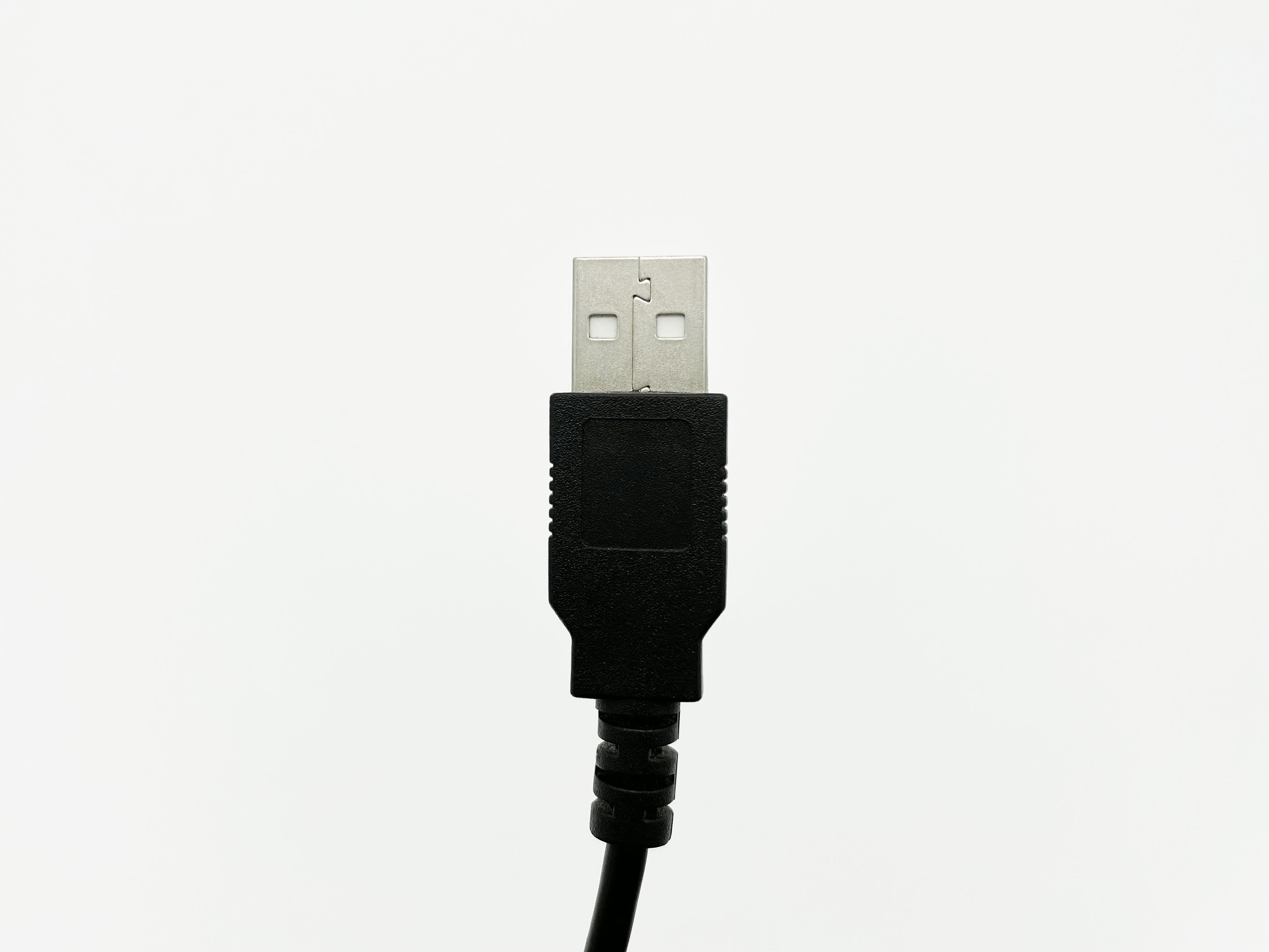

3. Connector 1: Mirco 5Pin USB, Connector 2: 4Pin USB A/M

4. Tie: 100mm, Black iron wire, 1PCS

5. Material: Black, PVC

6. Length: 1030mm

7. Usage: Data transmission, charging

Cycle Bending Test	1. Bending load: 200g, Angle: ±120°, Bending speed: 45 cycle/min, Bending cycles: 1200 cycles 2. After test, no appearance defects.
Cores Resistance	16AWG: 14.6Ω/km 22AWG: 59.4Ω/km 18AWG: 23.2Ω/km 24AWG: 94.2Ω/km 20AWG: 36.7Ω/km
Loading Durability Test	1. SR and DC plug of finished product loads 9kg weight, duration of load 1min. 2. The cable pulled away from the end position of the outer mold SR less than 2mm. Appearance: no damage.
Environmental Requirements	All materials used must conform “RoHS2.0, Reach, CA Prop65, Ortho Benzene 18P, PAHS”.
Special Note	Specification of DC plug and conductor, length of wire, SR model and color of jacket can customized according to customers.

Test Items		Test Standard	Test Tools
Electric Test	Conduction	No open circuit, short circuit, INT	Conduction Test Machine
	Polarity	The wiring method is consistent with the requirements	Conduction Test Machine
	Withstand voltage	AC500V 60S 1mA	High Voltage Resistor Tester
	Insulation	DC500V 60S 50mΩ	Conduction Test Machine

Wire	Conductor Material	AWG Size	Construction(mm)	Shield	OD(mm)	Jacket
UL2725	Tinned Stranded Copper Conductor Or Bare Copper Conductor	18	34/0.780BC±0.007 X 4P	Al-Mylar + Copper Braid	7.60	Black(white marking)
		22	7/0.254BC±0.007 X 4P		5.60	Black(white marking)
		24	11/0.160BC±0.007 X 4P		5.10	Black(white marking)
		26	7/0.160BC±0.007 X 4P		4.80	Black(white marking)
		28	7/0.127BC±0.007 X 4P		4.80	Black(white marking)

Specification of USB plug:

Minimum Order Quantity:
Packing Details: PE inner, carton outer
Delivery Time: 3-15 days upon receipt of payment
Payments Terms: T/T; Western Union; Paypal; L/C
Supply Ability: 50,0000/day
Delivery Method: Air Shipment; Sea Shipment; UPS; FEDEX; DHL
