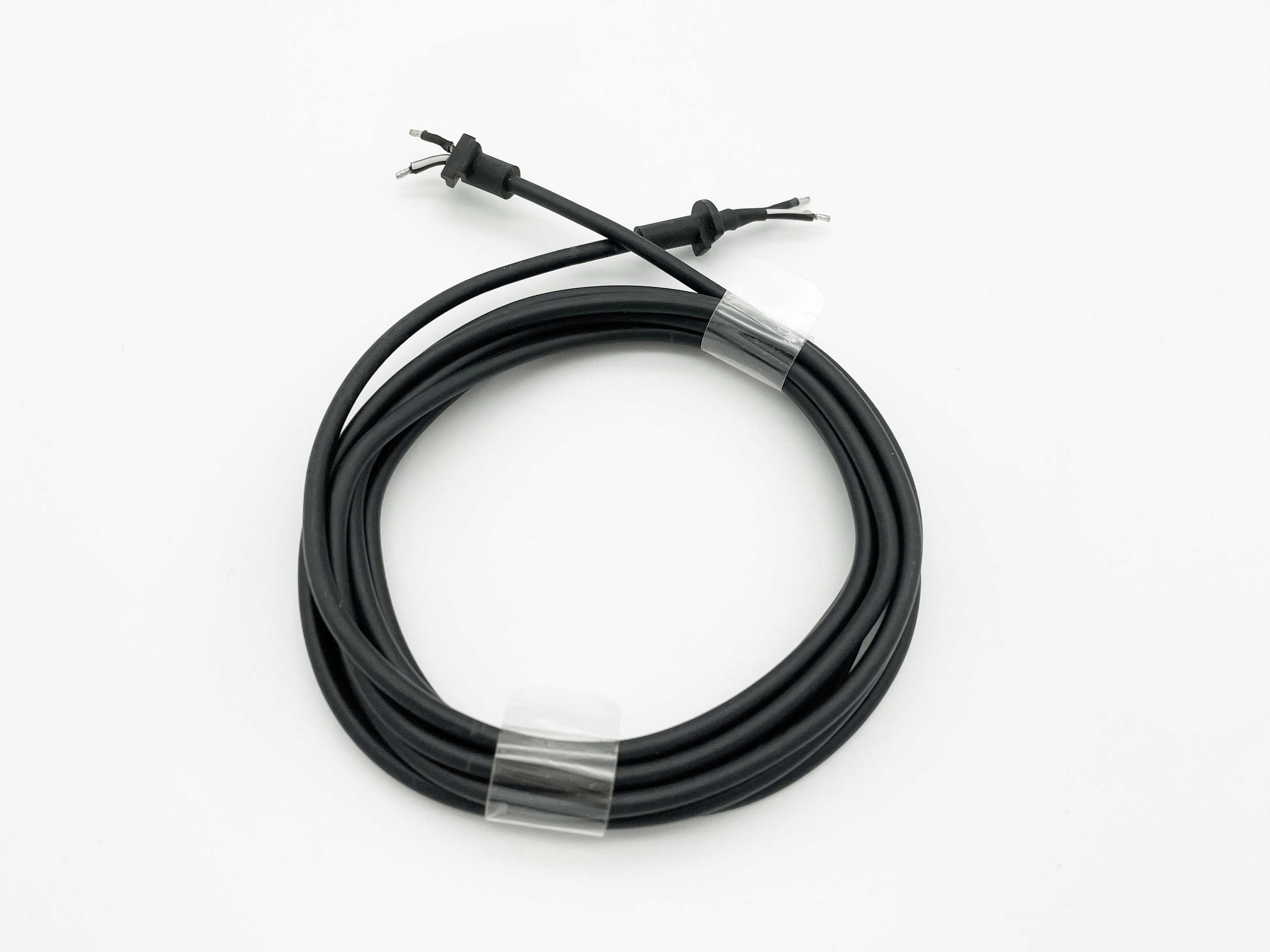

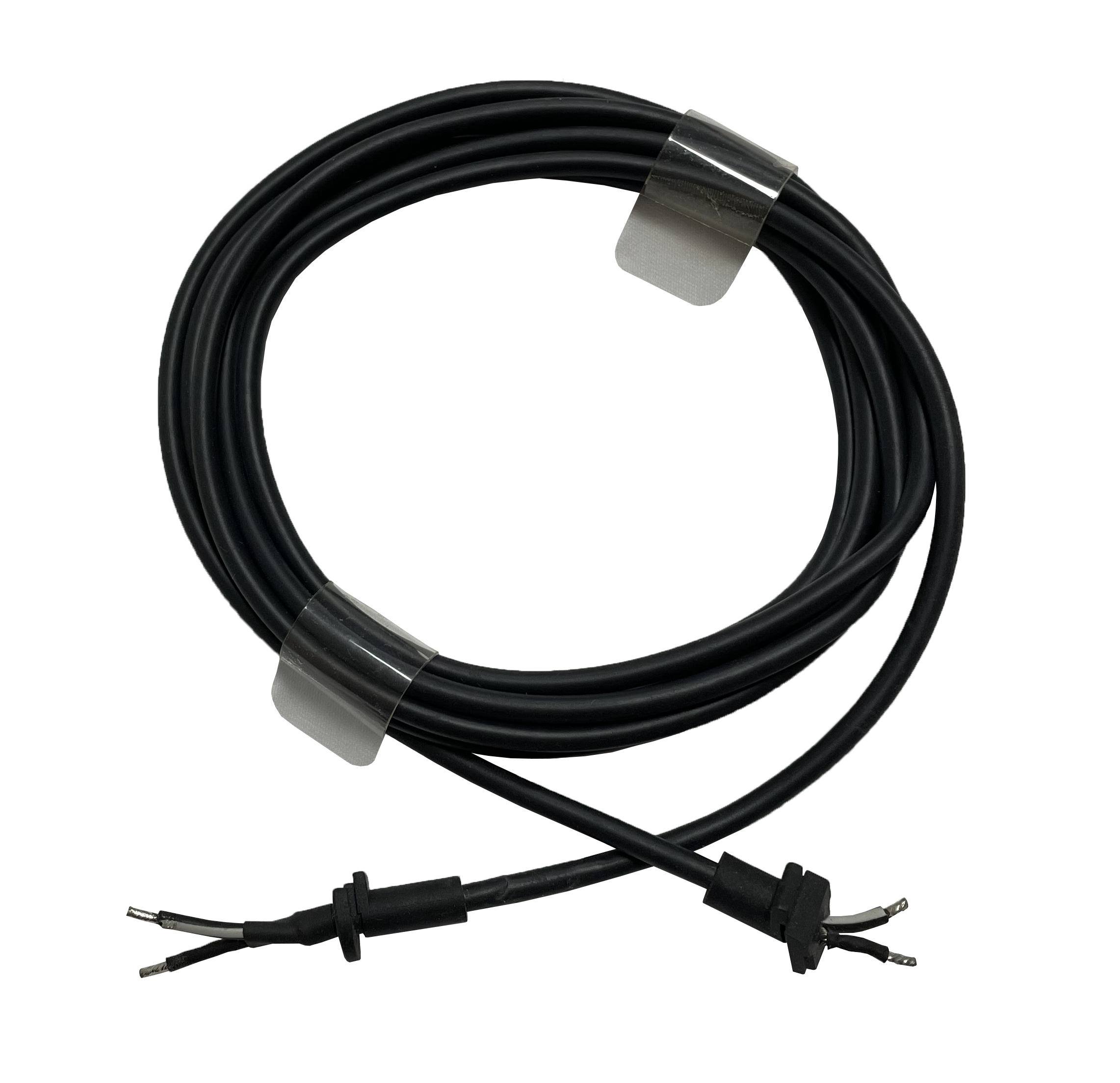

KS-C005: UL10800 Halogen Free Cable



• Cycle Bending Test	1. Bending load: 1000g, Angle: ±45°, Bending speed: 30 cycle/min,     Bending cycles: 5000 cycles. 2. After test, no appearance defects.
  Cores Resistance	16AWG: 14.6Ω/km                 22AWG: 59.4Ω/km   18AWG: 23.2Ω/km                 24AWG: 94.2Ω/km 20AWG: 36.7Ω/km
  Loading Durability Test	1. SR and DC plug of finished product loads 1.5kg weight, duration of load 30s.  2. The cable pulled away from the end position of the outer mold SR less than 2mm.Appearance: no damage.
  Hight Temperature Resistant Test	1. Test temperature≥80℃, load 3 hours. 2. No defects such as deformation and cracking.
  Flammability Test	VW-1, FT1
  Environmental Requirements	All materials used must conform “RoHS2.0, Reach, CA Prop65, Ortho Benzene 18P,  PAHS”.
  Special Note	Specification of DC plug and conductor, length of wire, SR modeland color of jacket can customized according to customers.

Test Items		Test Standard	Test Tools
Electric Test	Conduction	No open circuit, short circuit, INT	Conduction Test Machine
	Polarity	The  wiring method is consistent with the requirements	Conduction Test Machine
	Withstand voltage	AC500V 60S 1mA	High Voltage Resistor Tester
	Insulation	DC500V 60S 50mΩ	Conduction Test Machine

Wire	Conductor Material	AWG Size	Construction(mm)	OD(mm)	Core Color	Jacket
UL 10800	Tinned Stranded Copper Conductor Or Bare Copper Conductor	28	7/0.127BC	0.38	White	Black(white marking)
		26	7/0.16BC	0.48	White	Black(white marking)
		24	11/0.16BC	0.61	White	Black(white marking)
		22	17/0.16BC	0.76	White	Black(white marking)
		20	26/0.16BC	0.94	White	Black(white marking)
		18	41/0.16	1.18	White	Black(white marking)
		16	26/0.254	1.49	White	Black(white marking)

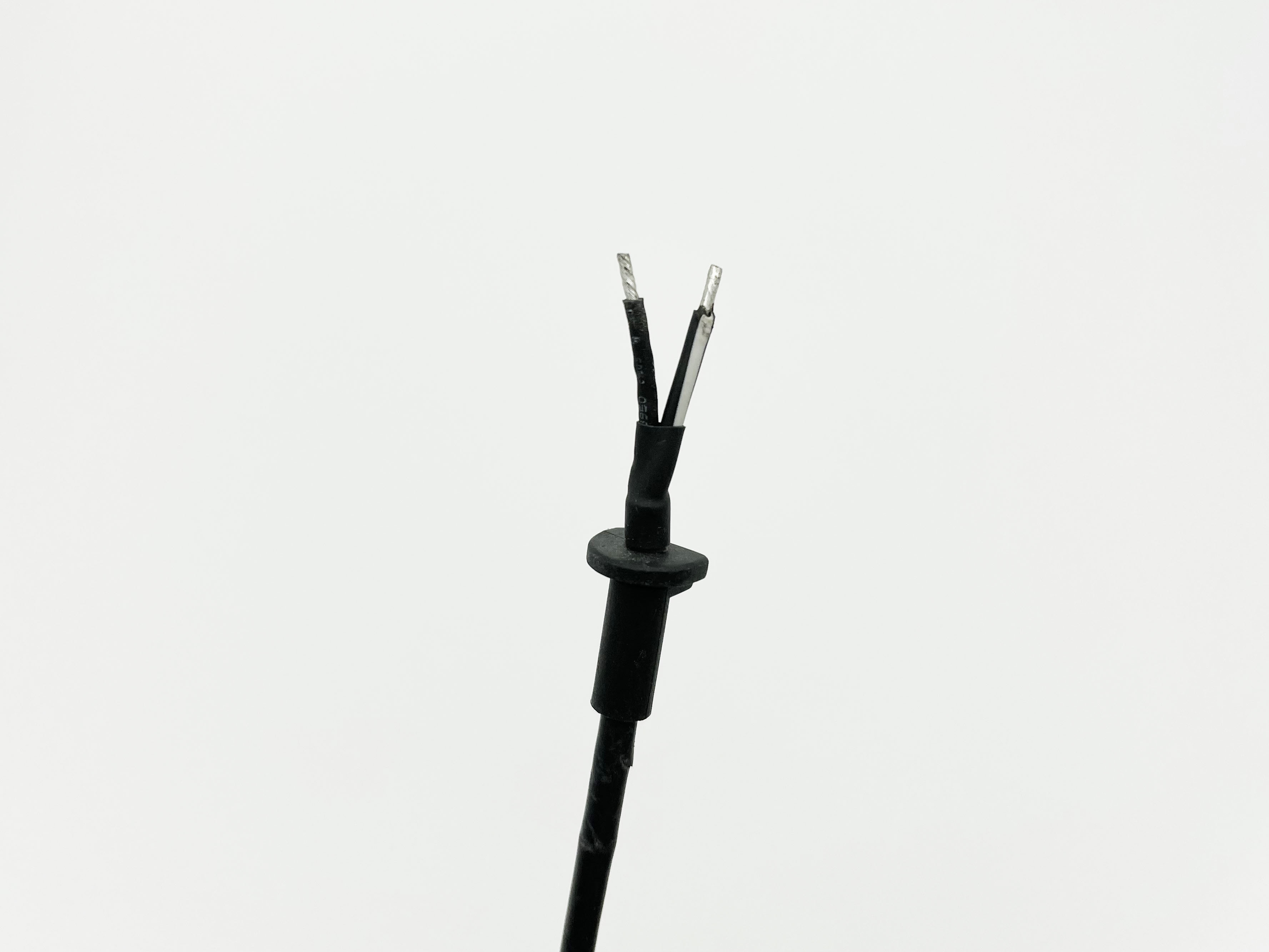

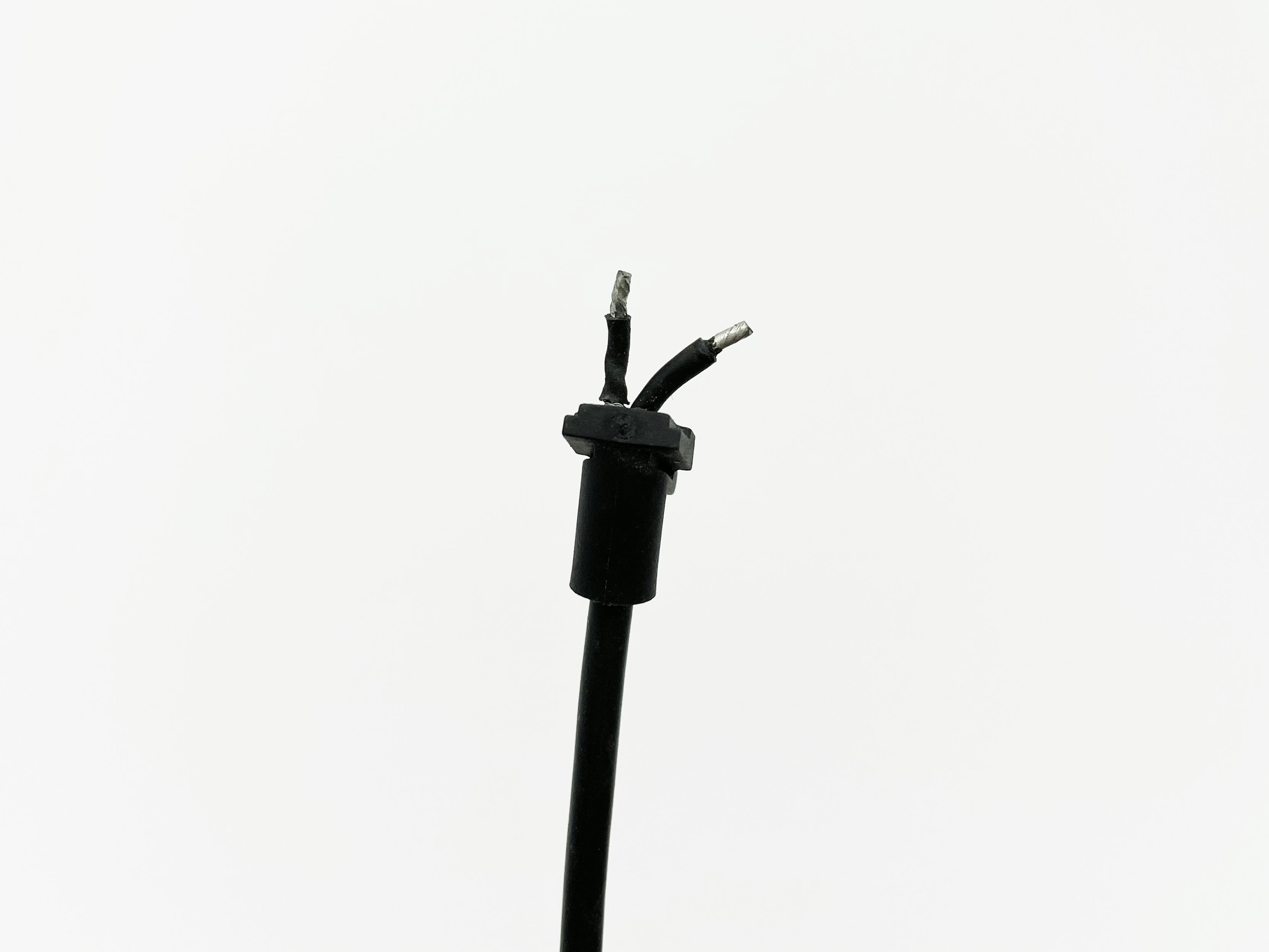

Specification of SR model:





​​Minimum order quantity:
Packing Details: PE inner, carton outer
Delivery Time: 3-15 days upon receipt of payment
Payments Terms: T/T; western union; paypal; L/C
Supply Ability: 50,0000/day
Delivery Method: air shipment; sea shipment; UPS; FEDEX; DHL
