KS-CC04:HDMI A/M To HDMI A/M Signal Cable

2021-07-26 15:30

by admin Publish

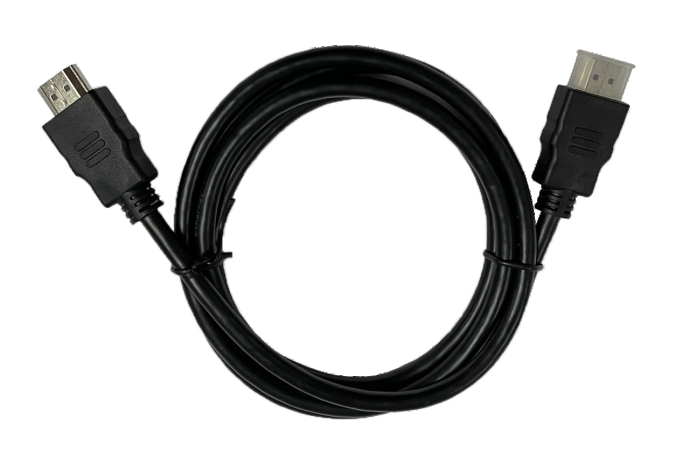

KS-CC04: HDMI A/M To HDMI A/M Signal Cable

1. P/N: KS-CC03

2. Cable: HDMI 30awg(1/0.254CCSx1P+1/0.254CCS+AL+ML)x5P+1/0.254CCSx4C+AEB, Drain=1/0.254CCS 128/0.12AL-MG, OD6.0±0.15mm

3. Connector: HDMI 19P/AM, Pin plated gold

4. Tie: 90mm, Black iron wire, 2PCS

5. Material: Black, PVC

6. Length: 1500±30mm

7. Usage: Signal communication(transmission wire harness, TV signal cable)

Insulation Resistance	1. DC/300V 2. Resistance ≥10mΩ
Withstand Voltage Test	1. AC/300V/1mA 2. Test time: 0.01s
Conduction Resistance	Resistance≤4Ω
Environmental Requirements	1. All materials used must conform “RoHS2.0, Reach, CA Prop65, Ortho Benzene 18P, PAHS”. 2. Disable red phosphorus.
Special Note	Specification of DC plug and conductor, length of wire, SR model and color of jacket can customized according to customers.

Wiring Diagram:

Minimum order quantity:
Packing Details: PE inner, carton outer
Delivery Time: 3-15 days upon receipt of payment
Payments Terms: T/T; western union; paypal; L/C
Supply Ability: 50,0000/day
Delivery Method: air shipment; sea shipment; UPS; FEDEX; DHL
